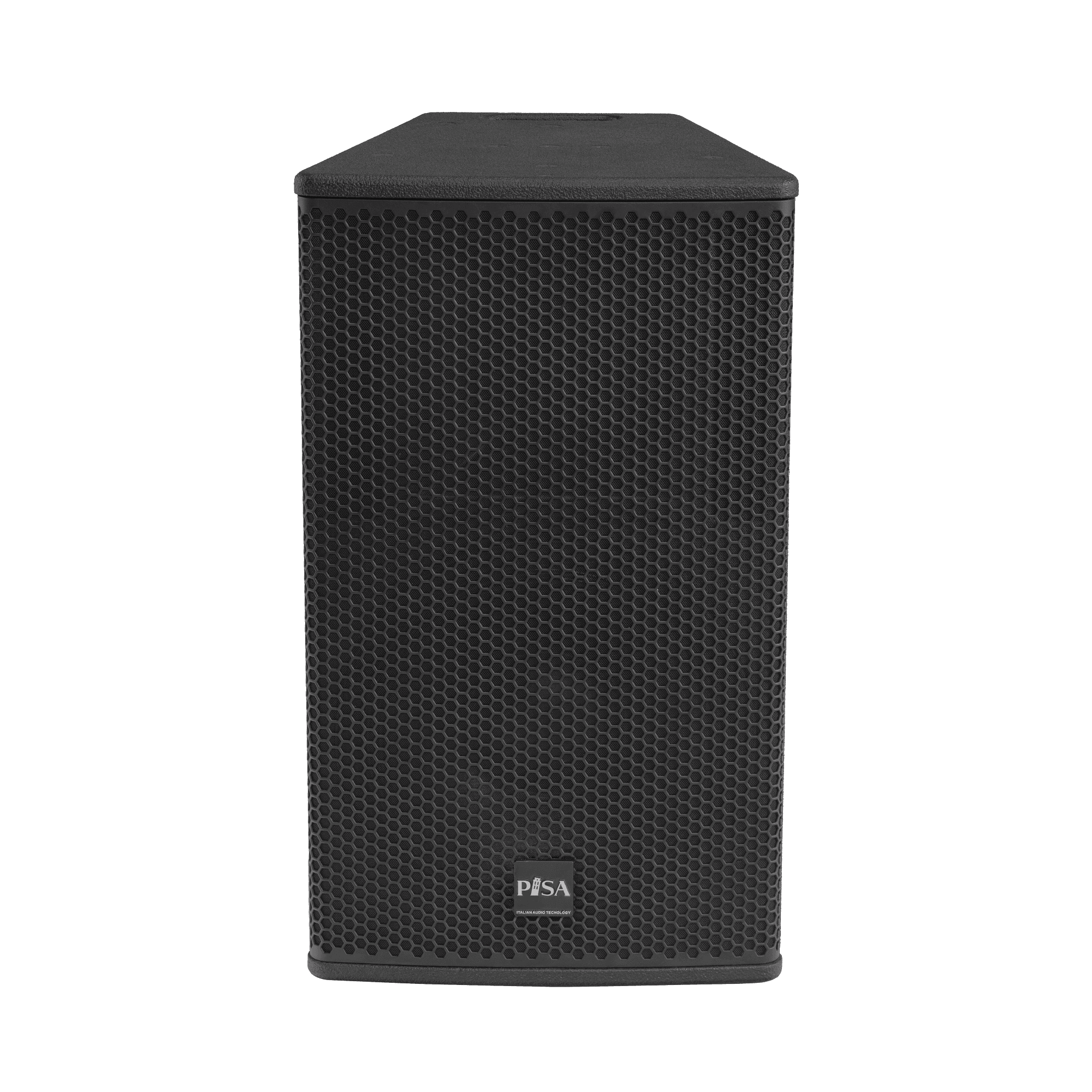

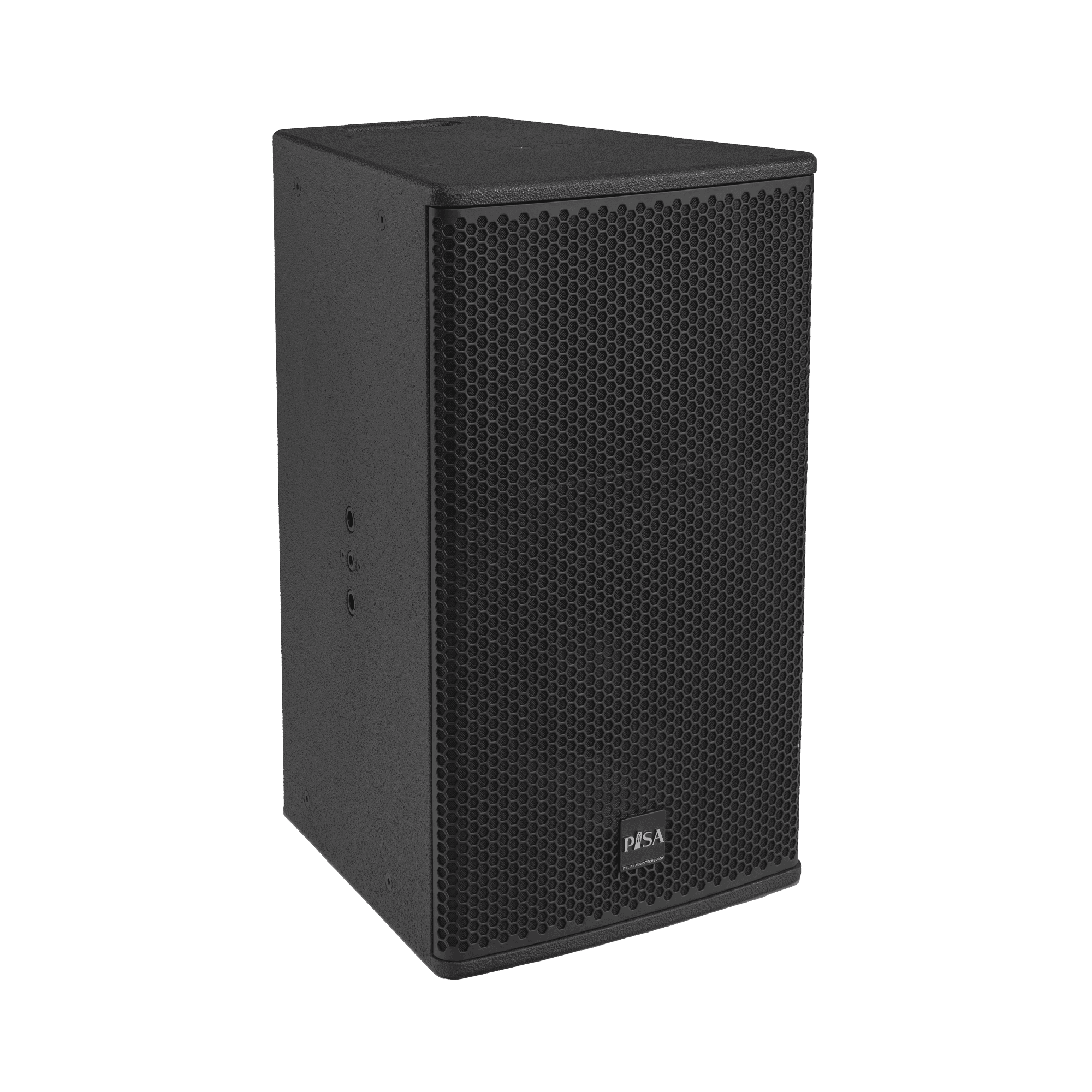

Pisa S12
Pisa S12
Pisa S12
The sound is vibrant and energetic, creating a lively atmosphere
The sound is vibrant and energetic, creating a lively atmosphere
The sound is vibrant and energetic, creating a lively atmosphere
Modern design
Modern design
Modern design
Easy Install
Easy Install
Easy Install
Waterproof
Waterproof
Waterproof
Composed of birch wood
Composed of birch wood
Composed of birch wood
Energetic sound
Energetic sound
Energetic sound
Italian-sourced components
Italian-sourced components
Italian-sourced components
Pisa s12 The sound is vibrant and energetic, creating a lively atmosphere
Pisa s12 The sound is vibrant and energetic, creating a lively atmosphere
Pisa s12 The sound is vibrant and energetic, creating a lively atmosphere
A paragon of sound perfection, with European-standard design and specifications, promises to deliver an unlimited music experience to listeners.
A paragon of sound perfection, with European-standard design and specifications, promises to deliver an unlimited music experience to listeners.
A paragon of sound perfection, with European-standard design and specifications, promises to deliver an unlimited music experience to listeners.
The low frequencies are reproduced by a 12” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
The low frequencies are reproduced by a 12” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
The low frequencies are reproduced by a 12” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
Performance & Technology
Performance & Technology
Performance & Technology
With a MAXSPL of up to 131dB, PISA S12 is not only suitable for home entertainment needs but also an ideal choice for large events such as pubs, lounges, parties, and meetings.
With a MAXSPL of up to 131dB, PISA S12 is not only suitable for home entertainment needs but also an ideal choice for large events such as pubs, lounges, parties, and meetings.
With a MAXSPL of up to 131dB, PISA S12 is not only suitable for home entertainment needs but also an ideal choice for large events such as pubs, lounges, parties, and meetings.
In addition to creating extremely high SPL to serve entertainment needs, PISA S12 can also do something unexpected: it can produce detailed and clear sound at low volume!
In addition to creating extremely high SPL to serve entertainment needs, PISA S12 can also do something unexpected: it can produce detailed and clear sound at low volume!
In addition to creating extremely high SPL to serve entertainment needs, PISA S12 can also do something unexpected: it can produce detailed and clear sound at low volume!
We are truly impressed by the PISA S12 speaker's excellence, which is rare for any other speaker to achieve. The speaker's strength is not just a number, but also a careful consideration of sound quality and user experience.
We are truly impressed by the PISA S12 speaker's excellence, which is rare for any other speaker to achieve. The speaker's strength is not just a number, but also a careful consideration of sound quality and user experience.
We are truly impressed by the PISA S12 speaker's excellence, which is rare for any other speaker to achieve. The speaker's strength is not just a number, but also a careful consideration of sound quality and user experience.
premium quality
premium quality
premium quality
The creativity of the Pisa S12 speakers does not stop at the integration of high-quality components that are researched and manufactured in Italy. The speakers are also coated with Polyurea water-resistant paint, which helps to protect them from the elements. This ensures that the speakers will last longer and perform better in a variety of environments.
The creativity of the Pisa S12 speakers does not stop at the integration of high-quality components that are researched and manufactured in Italy. The speakers are also coated with Polyurea water-resistant paint, which helps to protect them from the elements. This ensures that the speakers will last longer and perform better in a variety of environments.
The creativity of the Pisa S12 speakers does not stop at the integration of high-quality components that are researched and manufactured in Italy. The speakers are also coated with Polyurea water-resistant paint, which helps to protect them from the elements. This ensures that the speakers will last longer and perform better in a variety of environments.
High-end sound quality
High-end sound quality
High-end sound quality
Pisa S12 speakers deliver high-end sound quality that meets the needs of any user. The sound is reproduced clearly and detailed, especially in the high-frequency instruments. The special thing about Pisa S12 is the unique mid-high range that is rare for any 12-inch speaker on the market.
Pisa S12 speakers deliver high-end sound quality that meets the needs of any user. The sound is reproduced clearly and detailed, especially in the high-frequency instruments. The special thing about Pisa S12 is the unique mid-high range that is rare for any 12-inch speaker on the market.
Pisa S12 speakers deliver high-end sound quality that meets the needs of any user. The sound is reproduced clearly and detailed, especially in the high-frequency instruments. The special thing about Pisa S12 is the unique mid-high range that is rare for any 12-inch speaker on the market.
The mid-high range is the most "expensive" range of a speaker, and it is the part of the song that is reproduced clearly and distinctly. Pisa S12 uses neodymium technology to produce a maximum SPL of 131dB, which is a very high output for an 12-inch speaker.
The mid-high range is the most "expensive" range of a speaker, and it is the part of the song that is reproduced clearly and distinctly. Pisa S12 uses neodymium technology to produce a maximum SPL of 131dB, which is a very high output for an 12-inch speaker.
The mid-high range is the most "expensive" range of a speaker, and it is the part of the song that is reproduced clearly and distinctly. Pisa S12 uses neodymium technology to produce a maximum SPL of 131dB, which is a very high output for an 12-inch speaker.
time-tested quality
Pisa S12 speakers are not just a sound product, but also a symbol of perfection and creativity in the audio industry. With the unique combination of advanced technology and sophisticated design.
Pisa S12 has been conquering the hearts of thousands of music lovers all over the world. Experience it today to feel the power of the refined sound from Pisa S12 speakers!
time-tested quality
time-tested quality
Pisa S12 speakers are not just a sound product, but also a symbol of perfection and creativity in the audio industry. With the unique combination of advanced technology and sophisticated design.
Pisa S12 speakers are not just a sound product, but also a symbol of perfection and creativity in the audio industry. With the unique combination of advanced technology and sophisticated design.
Pisa S12 has been conquering the hearts of thousands of music lovers all over the world. Experience it today to feel the power of the refined sound from Pisa S12 speakers!
Pisa S12 has been conquering the hearts of thousands of music lovers all over the world. Experience it today to feel the power of the refined sound from Pisa S12 speakers!
Composed of birch wood
Composed of birch wood
All products in the S series (S8, S12, S15) are made of birch wood, which provides durability over time.
All products in the S series (S8, S12, S15) are made of birch wood, which provides durability over time.
Composed of birch wood
All products in the S series (S8, S12, S15) are made of birch wood, which provides durability over time.
Key Features
Key Features
Key Features
Modern design
Modern design
Modern design
The speaker's minimalist modern design is perfect for any
modern home
The speaker's minimalist modern design is perfect for any
modern home
The speaker's minimalist modern design is perfect for any modern home
Composed of birch wood
Composed of birch wood
Composed of birch wood
Birch wood is a hardwood with high durability, able to withstand impact and scratches. This helps the speaker to be used for a long time without damage.
Birch wood is a hardwood with high durability, able to withstand impact and scratches. This helps the speaker to be used for a long time without damage.
Birch wood is a hardwood with high durability, able to withstand impact and scratches. This helps the speaker to be used for a long time without damage.
Waterproof
Waterproof
Waterproof
Using Polyurea Paint technology, resistant to water and high humidity
Using Polyurea Paint technology, resistant to water and high humidity
Using Polyurea Paint technology, resistant to water and high humidity
Energetic sound
Energetic sound
Energetic sound
Energetic sound will fill the room with deep, rich bass and clear, crisp treble.
Energetic sound will fill the room with deep, rich bass and clear, crisp treble.
Energetic sound will fill the room with deep, rich bass and clear, crisp treble.
Easy install
Easy install
Easy install
The installation is made easy with no high technical skills or very special tools needed to install your device.
The installation is made easy with no high technical skills or very special tools needed to install your device.
The installation is made easy with no high technical skills or very special tools needed to install your device.
Italian-sourced components
Italian-sourced components
Italian-sourced components
Italian-sourced components deliver superior sound quality and performance.
Italian-sourced components deliver superior sound quality and performance.
Italian-sourced components deliver superior sound quality and performance.
Technical Specifications
Technical Specifications
Technical Specifications
Name
Name
Name
PISA S12
PISA S12
PISA S12
Number of ways
Number of ways
Number of ways
2 ways passive
2 ways passive
2 ways passive
Frequency Response (+3 dB)
Frequency Response (+3 dB)
Frequency Response (+3 dB)
50 Hz to 20 kHz
50 Hz to 20 kHz
50 Hz to 20 kHz
Sensitivity 1W@1M
Sensitivity 1W@1M
Sensitivity 1W@1M
98 dB SPL Nominal
98 dB SPL Nominal
98 dB SPL Nominal
Peak SPL Level (1m)
Peak SPL Level (1m)
Peak SPL Level (1m)
129 to 131dB Peak
129 to 131dB Peak
129 to 131dB Peak
Recommended Amplifiers
Recommended Amplifiers
Recommended Amplifiers
600 to 1000 Watts
600 to 1000 Watts
600 to 1000 Watts
HF Dispersion
HF Dispersion
HF Dispersion
90° x 60°
90° x 60°
90° x 60°
Recommended Power
Recommended Power
Recommended Power
RMS 400W / Peak 1000W
RMS 400W / Peak 1000W
RMS 400W / Peak 1000W
Nominal Impedance
Nominal Impedance
Nominal Impedance
8Ω
8Ω
8Ω
LF
LF
LF
12 inch (300mm) / 3 inch (76mm) voice coil, Ferrite magnet, B&C custom manufacturing
12 inch (300mm) / 3 inch (76mm) voice coil, Ferrite magnet, B&C custom manufacturing
12 inch (300mm) / 3 inch (76mm) voice coil, Ferrite magnet, B&C custom manufacturing
HF
HF
HF
1 inch (25mm) / 1.75 inch (44mm) voice coil, Titanium diaphragm, Neodymium
1 inch (25mm) / 1.75 inch (44mm) voice coil, Titanium diaphragm, Neodymium
1 inch (25mm) / 1.75 inch (44mm) voice coil, Titanium diaphragm, Neodymium
B&C&18Sound
B&C&18Sound
B&C&18Sound
Custom speaker
Custom speaker
Custom speaker
Enclosure Material
Enclosure Material
Enclosure Material
Baltic birch wood, Polyurea paint finish
Baltic birch wood, Polyurea paint finish
Baltic birch wood, Polyurea paint finish

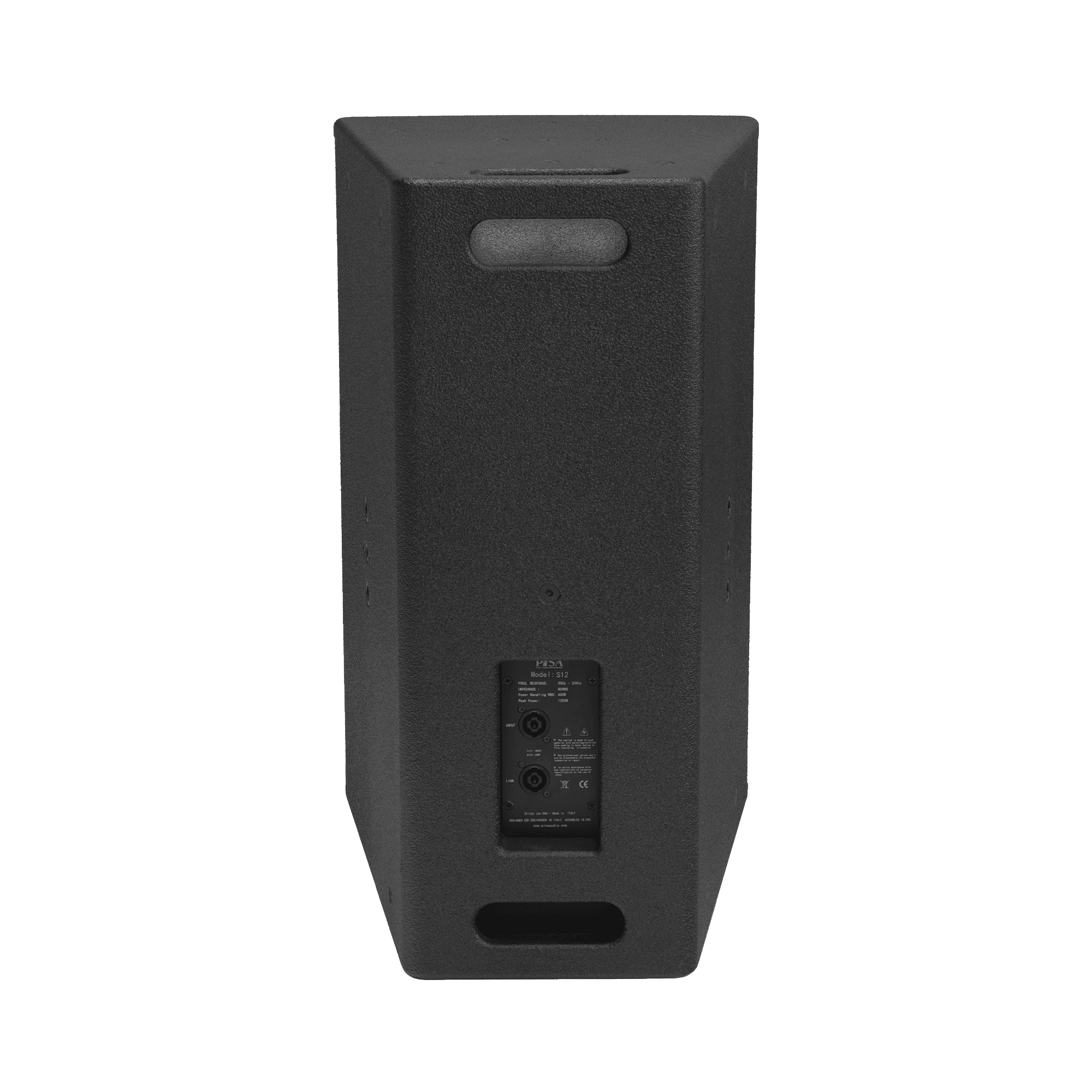

Pin Connections Left to right
Pin Connections Left to right
Pin Connections Left to right
2 x NL4MP Speakon 4 pole
2 x NL4MP Speakon 4 pole
2 x NL4MP Speakon 4 pole
DIMENSIONS
DIMENSIONS
DIMENSIONS
(W) 360mm x (H) 615mm x (D) 399mm
(W) 360mm x (H) 615mm x (D) 399mm
(W) 360mm x (H) 615mm x (D) 399mm
WEIGHT
WEIGHT
WEIGHT
25.4KG (55.9lbs)
25.4KG (55.9lbs)
25.4KG (55.9lbs)
Recommended powering solution
Recommended powering solution
Recommended powering solution
PowerSoft T304 : Up to 1 x PISAS12 per channel
PowerSoft T604 : Up to 2 x PISAS12 per channel
PowerSoft T304 : Up to 1 x PISAS12 per channel
PowerSoft T604 : Up to 2 x PISAS12 per channel
PowerSoft T304 : Up to 1 x PISAS12 per channel
PowerSoft T604 : Up to 2 x PISAS12 per channel
