Pisa S12
Pisa S12
Pisa S12
Precision passive full-range loudspeaker
Precision passive full-range loudspeaker
Precision passive full-range loudspeaker
100v / 16Ω Input
100v / 16Ω Input
100v / 16Ω Input
Easy Install
Easy Install
Easy Install
Waterproof
Waterproof
Waterproof
Bracket Included
Bracket Included
Bracket Included
Ver./Hor. Installation
Ver./Hor. Installation
Ver./Hor. Installation
Available in Black or White
Available in Black or White
Available in Black or White
The S12 two-way loudspeakers with built-in 100V transformer and 16Ω power tap
The S12 two-way loudspeakers with built-in 100V transformer and 16Ω power tap
The S12 two-way loudspeakers with built-in 100V transformer and 16Ω power tap
Perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bar terrace, churches, malls or conferences.
Perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bar terrace, churches, malls or conferences.
Perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bar terrace, churches, malls or conferences.
The speakers are housed in a stylish weatherproof plastic cabinet (IP65 - using the back cover) providing an excellent architectural integration, both indoor and outdoor.
The speakers are housed in a stylish weatherproof plastic cabinet (IP65 - using the back cover) providing an excellent architectural integration, both indoor and outdoor.
The speakers are housed in a stylish weatherproof plastic cabinet (IP65 - using the back cover) providing an excellent architectural integration, both indoor and outdoor.
he very accurate speaker’s coverage allows the people, among the audience, to perceive the sound in the same way.
he very accurate speaker’s coverage allows the people, among the audience, to perceive the sound in the same way.
he very accurate speaker’s coverage allows the people, among the audience, to perceive the sound in the same way.
The low frequencies are reproduced by a 8” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
The low frequencies are reproduced by a 8” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
The low frequencies are reproduced by a 8” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
U-Bracket Included
U-Bracket Included
U-Bracket Included
The S8 comes with a U-Bracket included on the packaging, made from Steel with a Hot-dip Galvanization, coating the steel with a layer of zinc, turning it resistant to corrosion. Other wall brackets (with pan and tilt) are available for T8 speakers.
The S8 comes with a U-Bracket included on the packaging, made from Steel with a Hot-dip Galvanization, coating the steel with a layer of zinc, turning it resistant to corrosion. Other wall brackets (with pan and tilt) are available for T8 speakers.
The S8 comes with a U-Bracket included on the packaging, made from Steel with a Hot-dip Galvanization, coating the steel with a layer of zinc, turning it resistant to corrosion. Other wall brackets (with pan and tilt) are available for T8 speakers.
Versatile Installations
Versatile Installations
Versatile Installations
The S8 speakers are an excellent solution to sound your installation such as retail stores, restaurants, bar terraces, churches, malls or conferences among others.
The S8 speakers are an excellent solution to sound your installation such as retail stores, restaurants, bar terraces, churches, malls or conferences among others.
The S8 speakers are an excellent solution to sound your installation such as retail stores, restaurants, bar terraces, churches, malls or conferences among others.
Adjustable Bracket
Adjustable Bracket
Adjustable Bracket
Install your S8 speakers easily, adjusting the wall bracket and positioning in the desired position.
Install your S8 speakers easily, adjusting the wall bracket and positioning in the desired position.
Install your S8 speakers easily, adjusting the wall bracket and positioning in the desired position.
Easy Connections
Easy Connections
Easy Connections

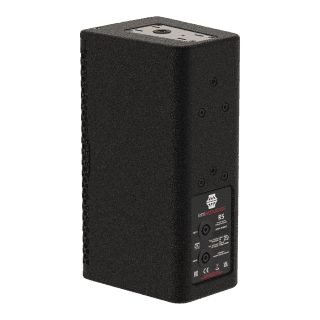

The T8 speakers are equipped with a 4-positions (IN+/IN- and LINK+/LINK-) Phoenix connector located on the back plate. The screw connector provides a faster and easier way to wire the system allowing the speaker to perfectly ¬fit the wall shape while keeps the cables invisible.
The T8 speakers are equipped with a 4-positions (IN+/IN- and LINK+/LINK-) Phoenix connector located on the back plate. The screw connector provides a faster and easier way to wire the system allowing the speaker to perfectly ¬fit the wall shape while keeps the cables invisible.
The T8 speakers are equipped with a 4-positions (IN+/IN- and LINK+/LINK-) Phoenix connector located on the back plate. The screw connector provides a faster and easier way to wire the system allowing the speaker to perfectly ¬fit the wall shape while keeps the cables invisible.
Black Plate for IP65
Black Plate for IP65
Black Plate for IP65
The T8 includes a back cover that permits the speaker to be exposed to rain or highly humid environments. Note: The IP65 rate can only be achieved when the back cover is in place.
The T8 includes a back cover that permits the speaker to be exposed to rain or highly humid environments. Note: The IP65 rate can only be achieved when the back cover is in place.
The T8 includes a back cover that permits the speaker to be exposed to rain or highly humid environments. Note: The IP65 rate can only be achieved when the back cover is in place.

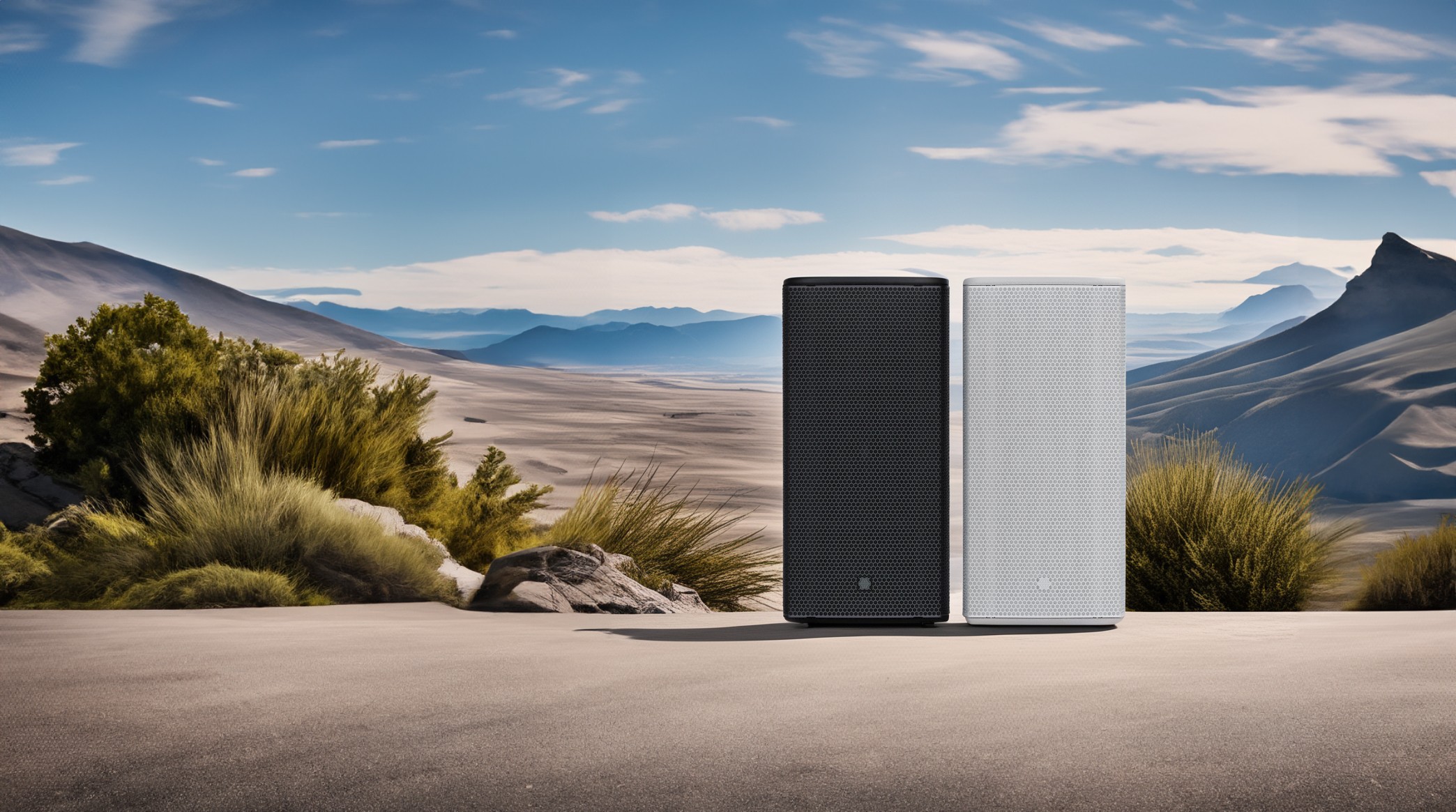

Black and White available
Black and White available
All the S Series (S8, S10, S12 and S15) is available in black and white to match the decor of your installation as you need.
All the S Series (S8, S10, S12 and S15) is available in black and white to match the decor of your installation as you need.
Black and White available
All the S Series (S8, S10, S12 and S15) is available in black and white to match the decor of your installation as you need.
Key Features
Key Features
Key Features
100v / 16Ω Input
100v / 16Ω Input
100v / 16Ω Input
The integrated transformer allows you to use the speaker at 100V line or low impedance 16Ω depending on the needs of your installation.
The integrated transformer allows you to use the speaker at 100V line or low impedance 16Ω depending on the needs of your installation.
The integrated transformer allows you to use the speaker at 100V line or low impedance 16Ω depending on the needs of your installation.
Easy Install
Easy Install
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
The installation is made easy with no high technical skills or very special tools needed to install your device.
The installation is made easy with no high technical skills or very special tools needed to install your device.
Weatherproof
Weatherproof
Weatherproof
The IP65 rated enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.
The IP65 rated enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.
The IP65 rated enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.
Ver./Hor. Installation
Ver./Hor. Installation
Ver./Hor. Installation
You can install your speaker on either horizontally or vertically, depending on your installation needs.
You can install your speaker on either horizontally or vertically, depending on your installation needs.
You can install your speaker on either horizontally or vertically, depending on your installation needs.
Bracket Included
Bracket Included
Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
Easily install your speaker on the wall or ceiling using the included bracket.
Easily install your speaker on the wall or ceiling using the included bracket.
Available in Black or White
Available in Black or White
Available in Black or White
This product is available in both black or white colors. Please choose the product accordingly.
This product is available in both black or white colors. Please choose the product accordingly.
This product is available in both black or white colors. Please choose the product accordingly.
Technical Specifications
Technical Specifications
Technical Specifications
Product Type
Product Type
Product Type
Compact, passive two-way system
Compact, passive two-way system
Compact, passive two-way system
RMS Power
RMS Power
RMS Power
150W
150W
150W
Sensitivity (1W, 1m)
Sensitivity (1W, 1m)
Sensitivity (1W, 1m)
94dB
94dB
94dB
Low Frequency Driver
Low Frequency Driver
Low Frequency Driver
8" Woofer
8" Woofer
8" Woofer
Recommended Amplifier
Recommended Amplifier
Recommended Amplifier
MX120 | MX350
MX120 | MX350
MX120 | MX350
IP Rating
IP Rating
IP Rating
IP65
IP65
IP65
Net Weight
Net Weight
10.7kg (23.6lb)
10.7kg (23.6lb)
Net Weight
10.7kg (23.6lb)
Frequency Response (-6dB)
Frequency Response (-6dB)
Frequency Response (-6dB)
60Hz - 18kHz
60Hz - 18kHz
60Hz - 18kHz
Program Power
Program Power
Program Power
300W
300W
300W
Maximum SPL (calculated)
Maximum SPL (calculated)
Maximum SPL (calculated)
119dB
119dB
119dB
High Frequency Driver
High Frequency Driver
High Frequency Driver
1" Driver
1" Driver
1" Driver
Grille
Grille
Grille
Aluminum Acoustically Invisible
Aluminum Acoustically Invisible
Aluminum Acoustically Invisible
Dimensions (WxHxD)
Dimensions (WxHxD)
Dimensions (WxHxD)
240 x 450 x 287mm (9.4 x 17.7 x 11.3 in)
240 x 450 x 287mm (9.4 x 17.7 x 11.3 in)
240 x 450 x 287mm (9.4 x 17.7 x 11.3 in)
Shipping Weight
Shipping Weight
12.2kg (26.9lb)
12.2kg (26.9lb)
Shipping Weight
12.2kg (26.9lb)
Nominal Coverage (-6dB)
Nominal Coverage (-6dB)
Nominal Coverage (-6dB)
90° H x 50º V
90° H x 50º V
90° H x 50º V
Nominal Impedance
Nominal Impedance
Nominal Impedance
16Ω (low impedance mode)
16Ω (low impedance mode)
16Ω (low impedance mode)
Transformer Taps 100V
Transformer Taps 100V
Transformer Taps 100V
37.5W | 75W | 150W
37.5W | 75W | 150W
37.5W | 75W | 150W
Input Connectors
Input Connectors
Input Connectors
4 Pins Screw Connector (IN/OUT)
4 Pins Screw Connector (IN/OUT)
4 Pins Screw Connector (IN/OUT)
Construction
Construction
Construction
Weatherproof Plastic Cabinet
Weatherproof Plastic Cabinet
Weatherproof Plastic Cabinet
Fixation
Fixation
Fixation
Wall U-Bracket (included)
Wall U-Bracket (included)
Wall U-Bracket (included)
